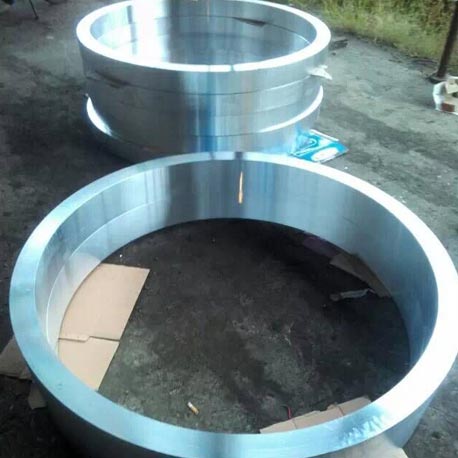

Aluminum forging/rolled rings / circle an ideal choice for the types of high-stress applications often found in the defense and aerospace industry.
The Capabilities with aluminum extend to a variety of alloys including 1100, 2014, 2024, 2219, 5083, 5086, 6061, 6063, 7049, 7050, 7075, 7079, 7175 and 7475. We can forge aluminum rolled rings Different sizes. Our produces forged/rolled aluminum rings, disks, Tube, Bar etc. that consistently meet the demanding specifications of its customers.
Our devotion to the quality of our products has earned us approvals from some of the leading aerospace and defense companies in the world and maintain the most rigorous quality assurance processes in the industry. made us a leader in the forging industry.
| FORGING | TYPE | MAX. WEIGHT | MAX. DIMENSION | ALLOY | STANDARD |
| Open die forging | Cube | ≤ 9t | Length ≤ 7000mm , Width ≤ 2000mm , Height ≤ 500mm | 2219、2618、2B50、2A50、2A70、2A80. 2D70、2A14、2014、2A11、2A12、2024、5A90、3A21、4032、5210、5A02、5A03、5083、5A05、5A06、6A02、6061、7A04、7B04、7A09、7075、7050、7A19、7A10 | GBn 223, YS/T 479, ASTM B247, AMS Standards |
| Disk | ≤ 5t | Diameter ≤ 2500mm | |||
| Ring / circle | ≤ 5t | Outer diameter of quenching parts ≤ 2500mm , Outer diameter of non-quenching parts ≤ 4000mm, Height ≤ 500mm | |||
| Cylinder | ≤ 5t | Outer diameter 200-800mm, Length ≤ 2000mm , Diameter 801-2000mm, Length ≤ 1500mm | |||
| Axle | ≤ 8t | Length ≤ 7000mm , Diameter ≤ 800mm | |||
| Backward Extrusion | Forged Pipe | Outer Diameter ≤ 830mm, Inner Diameter ≤ 650mm, Length ≤ 1800mm | |||
| Available Temper: 0、F、H112、T3、T4、T5、T6、T62、T652、T73、T74、T7452、T852 etc. | |||||
We can provide customized services according to your needs. Send your request

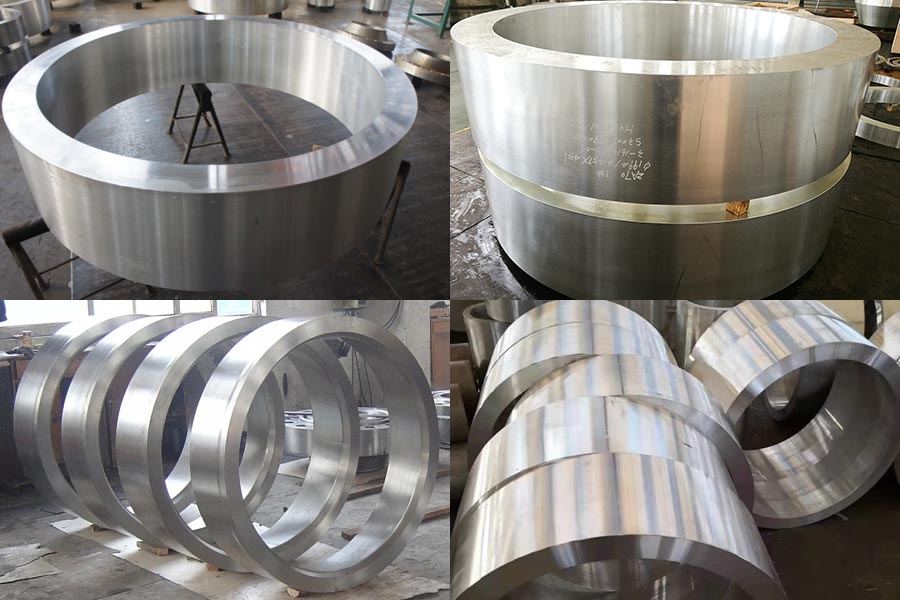

Forged aluminum rings are used in a wide range of industries, including the aircraft, aerospace, automotive, architectural, appliance, military and defense, marine, petrochemical and process equipment industries.
If you’re interested in producing custom forged metal parts, Contact us today to schedule a consultation. Our experienced support team members will go through your project requirements with you, help you determine the best course of action, and provide you with a free quote for your project.
We have the experience, resources, and capabilities to exceed all your custom open-die Aluminium alloy forging needs. Request a quote today on the custom Aluminium alloy forgings you need, or contact us for more information.
| American AA | Japan JIS | German CORUS | Britain DIN | France NF | Russian ГOCT | India IS | ISO | EN |
| BД17/1170 | ||||||||
| ГOCT4785-1974 | ||||||||
| Д16/1190 | ||||||||
| ГOCT4785-1974 | ||||||||
| B65/1165 | ||||||||
| ГOCT4785-1974 | ||||||||
| 2017/A92017 | A2017 | Д1/1110 | 24534 | AL Cu4MgSi | ||||
| AA/UNS | JIS H4000-1999 JIS H4040-1999 |
ГOCT4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | ||||
| 2024 | A2024 | AICuMg2/3.1355 | 2024(A-U4G1) | Д16/1160 | 24530 | AICu4Mg1 | EN AW-2024/AI Cu4Mg1 | |
| AA | JIS H4000-1999 JIS H4040-1999 |
DIN 1725-1-1986 | NF A50-411 NF A50-451 |
ГOCT4785-1974 | IS 5902 | ISO 209.1-1989 | EN 573-3-1994 | |
| 2219/A92219 | A2219 | Д20/1201 | AICu6Mn | EN AW-2219/AI Cu6Mn | ||||
| AA/UNS | JIS H4000-1999 JIS H4040-1999 |
ГOCT4785-1974 | ISO209.1-1989 | EN 573-3-1994 | ||||
| 2618/A92618 | A2618 | AK4-1/1141 | ||||||
| AA/UNS | JIS H4140-1988 | ГOCT4785-1974 | ||||||
| A2N01 | AK4/1140 | |||||||
| JIS H4140-1988 | ГOCT4785-1974 | |||||||
| 2018/A92018 | A2018 | AK2/1120 | ||||||
| AA/UNS | JIS H4140-1988 | ГOCT4785-1974 | ||||||
| 2011/A92011 | A2011 | AICuBiPb/3.1655 | 2011(FC1) | 2011(A-U5PbBi) | ～Д1/1110 | AI Cu6BiPb | EN AW-2011/AI Cu6BiPb | |
| AA/UNS | JIS H4040-1999 JIS H4080-1999 |
DIN 1725-1-1986 | BS 1470-1988 | NF 50-411 | ГOCT4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | |
| 2014/A92014 | A2014 | AICuSiMn/3.1655 | 2014(H15) | 2014(A-U4SG) | AK8/1380 | 24345 | AI Cu4SiMg | EN AW-2014/AI Cu4SiMg |
| AA/UNS | JIS H4000-1999 JIS H4040-1999 |
DIN 1725-1-1986 | BS 14710-1988 | NF A50-411 NF A50-451 |
ГOCT4785-1974 | IS733-2001 IS737-2001 |
ISO209.1-1989 | EN 573-3-1994 |
| 2014A | A2014A | AI Cu4SiMg(A) | EN AW-2014A/AI Cu4SiMg(A) | |||||
| AA | JIS H4100-1999 JIS H4040-1999 |
ISO 209.1-1989 | EN 573-3-1994 | |||||
| 2017A/A92017 | A2017A | AICuMg1/3.1325 | 2017A(A-U4G) | AK21/1120 | 24534 | AI Cu4MgSi(A) | EN AW-2017A/AI Cu4MgSi(A) | |
| AA/UNS | JIS H4040-1999 JIS H4080-1999 |
DIN 1725-1-1986 | NF A50-411 NF A50-451 |
ГOCT4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | |
| 2024/A92024 | A2024 | AICuMg2/3.1355 | 2024(A-U4G1) | Д16/1160 | 24530 | AI Cu4Mg1 | EN AW-2024/AI Cu4Mg1 | |
| AA/UNS | JIS H4100-1999 JIS H4040-1999 |
DIN 1725-1-1986 | NF A50-411 NF A50-451 |
ГOCT47785-1974 | ГOCT47785-1974 | IS 739-2001 | EN 573-3-1994 | |
| 2124/A92124 | Д16Л/1161 | EN AW-2124/AI Cu4Mg1(A) | ||||||
| AA/UNS | ГOCT4785-1974 | EN 573-3-1994 | ||||||
| 2117/A92117 | A2117 | AICu2.5Mg0.5/3.1305 | 2117(A-U2G) | AI Cu2.5Mg | EN AW-2117/AI Cu2.5Mg | |||
| AA/UNS | JIS H4040-1999 | DIN 1725-1-1986 | NFA50-451 | ISO 209.1-1989 | EN 573-3-1994 | |||
| 2214/A92214 | ～ AK8/1380 | EN AW-2214/AI Cu4SiMg(B) | ||||||
| AA/UNS | ГOCT4785-1974 | EN 573-3-1994 | ||||||
| 2218/A92218 | A2218 | 2218(A-U4N) | ||||||
| AA/UNS | JIS H4140-1988 | NF 50-411 | ||||||
| 2618/A92618 | A2618 | AK4-1/1141 | ||||||
| AA/UNS | JIS H4140-1988 | ГOCT 4785-1974 | ||||||
| 2001/A92001 | 2001(A-U6MT) | EN AW-2001/AI Cu5.5MgMn | ||||||
| AA/UNS | NF A50-101 | EN 573-3-1994 | ||||||
| 2007/A92007 | AICuMgPb/3.1645 | EN AW-2007/AI Cu4PbMgMn | ||||||
| AA/UNS | DIN 1725-1-1986 | EN 573-3-1994 | ||||||
| 5052/A95052 | A5052 | AIMg2.5/3.3523 | 5052(NS4) | 5052(A-G2.5C) | AMr2/1520 | AI Mg2.5 | EN AW-5052/AI Mg2.5 | |
| AA/UNS | JIS H4040-1999 JIS H4100-1988 |
DIN 1725.1-1986/W-Nr. | BS 1470-1988 | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | |
| 5154/A95154 | A5154 | 5154A(NS5) | 5154A(A-G3C) | AMr3/1530 | AI Mg3.5 | EN AW-5154A/AI Mg3.5(A) | ||
| AA/UNS | JIS H4000-1999 | BS 1470-1988 | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | ||
| 5456/A95456 | ～A5056 | AIMg5/3.3555 | 5056(A56S) | ～AMr5/1550 | AI Mg5Mn1 | ～EN AW-5019/AI Mg5 | ||
| AA/UNS | JIS H4040-1999 JIS H4080-1999 |
DIN 1725.1-1986/W-Nr. | BS 1470-1988 | ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | ||
| A5005 | AMr6/1560 | |||||||
| JIS H4040-1999 JIS H4100-1988 |
ГOCT 4785-1974 | |||||||
| 5005/A95005 | A5005 | 5005(N41) | 5005(A-G0.6) | AMr1/1510 | 51000-A | AI Mg1(B) | EN AW-5005/AI Mg1(B) | |
| AA/UNS | JIS H4040-1999 JIS H4100-1988 |
BS 1470-1988 | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | |
| 5019/A95019 | AIMg5/3.3555 | 5019(NB6) | AMr5/1550 | EN AW-5019/AI Mg5 | ||||
| AA/UNS | DIN 1725.1-1986/W-Nr. | BS 1470-1988 | ГOCT 4785-1974 | EN 573-3-1994 | ||||
| 5050/A95050 | AIMg1.5/3.3316 | 5050(2L44) | 5050(A-G1.5) | AMr1/1510 | 51000-B | AI Mg1.5(C) | EN AW-5050/AI Mg1.5(C) | |
| AA/UNS | DIN 1725.1-1986/W-N | BS 1470-1988 | NF A50-451 | ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | |
| 5052/A95052 | A5052 | AIMg2.5/3.3523 | 5052(2155) | 5052(A-G2.5C) | AMr2/1520 | AI Mg2.5 | EN AW-5052/AI Mg2.5 | |
| AA/UNS | JIS H4000-1988 | DIN 1725.1-1986/W-Nr. | BS “L” | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | |
| 5056A95056 | A5056 | AIMg5/3.3555 | 5056(NG6/2L58) | AMr5/1550 | AI Mg5Cr | EN AW-5056A/AI Mg5 | ||
| AA/UNS | JIS H4040-1999 JIS H4080-1999 |
DIN 1725.1-1986/W-Nr. | BS 1470-1988/BS “L” | ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | ||
| 5083/A95083 | A5083 | AIMg4.5Mn/3.3547 | 5083(NT8) | 5083(A-G4.5MC) | 54300 | AI Mg4.5Mn0.7 | EN AW-5083/AI Mg4.5Mn0.7 | |
| AA/UNS | JIS H4040-1999 JIS H4080-1999 |
DIN 1725.1-1986/W-Nr. | BS 1470-1988 | NF A50-411 NF A50-451 |
IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | |
| 5086/A95086 | A5086 | AIMg4Mn/3.3545 | 5086(A-G4MC) | AMr4/1540 | AI Mg4 | EN AW-5086/AI Mg4 | ||
| AA/UNS | JIS H4000-1999 JIS H4080-1999 |
DIN 1725.1-1986/W-Nr. | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | ||
| 5154/A95154 | A5154 | 5154(A-G3C) | AMr3/1530 | AI Mg3.5 | ||||
| AA/UNS | JIS H4040-1999 JIS H4100-1988 |
NF A50-411 NF A50-451 |
ГOCT 4785-1974 | ISO 209.1-1989 | ||||
| 5154A | 5154A(NS5) | 53000 | AI Mg3.5(A) | EN AW-5154A/AI Mg3.5(A) | ||||
| AA | BS 1470-1988 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | ||||
| 5182/A95182 | A5182 | AIMg5Mn/3.3549 | 5182(A-G4.5M) | EN AW-5182/AI Mg4.5Mn0.4 | ||||
| AA/UNS | JIS H4000-1999 | DIN 1725.1-1986/W-Nr. | NF A50-481 | EN 573-3-1994 | ||||
| 5183/A95183 | A5183 | AIMg4.5Mn/3.3547 | 5183(NG8) | (~A-G4.5MC) | AMr4.5 | AI Mg4.5Mn0.7(A) | EN AW-5183/AI Mg4.5Mn0.7(A) | |
| AA | JIS | CORUS | DIN | NF | ГOCT | IS | ISO | EN |
| 5251/A95251 | AIMg2Mn0.3/3.3525 |
251(N4/3L80)
5 |
5251(A-G2M) | AMr2/1520 | 52000 | AI Mg2 | EN AW-5251/AI Mg2 | |
| AA/UNS | DIN 1725.1-1986/W-Nr. | BS 1470-1988/BS “L” | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | |
| 5356/A95356 | A5356 | AI Mg5Cr(A) | EN AW-5356/AI Mg5Cr(A) | |||||
| AA/UNS | JIS Z3232-1986 | ISO 209.1-1989 | EN 573-3-1994 | |||||
| 5454/A95454 | A5454 | AIMg2.7Mn/3.3537 | 5454(N51) | 5454(A-G2.5MC) | AI Mg3Mn | EN AW-5454/AI Mg3Mn | ||
| AA/UNS | JIS H4040-1999 JIS H4100-1999 |
DIN 1725.1-1986/W-Nr. | BS 1470-1988 | NF A50-411 NF A50-451 |
ISO 209.1-1989 | EN 573-3-1994 | ||
| 5456/A5456 | ～AMr5/1550 | AI Mg5Mn1 | ～EN AW-5456A/AI Mg5Mn1(A) | |||||
| AA/UNS | ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | |||||
| 5554/A95554 | A5554 | 5554(N52) | AI Mg3Mn(A) | EN AW-5554/AI Mg3Mn(A) | ||||
| AA/UNS | JIS H4160-1994 | BS 1470-1988 | ISO 209.1-1989 | EN 573-3-1994 | ||||
| 5049/A95049 | AIMg2Mn0.8/3.3527 | 5049 | EN AW-5049/AI Mg2Mn0.8 | |||||
| AA/UNS | DIN 1725.1-1986/W-Nr. | NF A50-451 | EN 573-3-1994 | |||||
| 5556/A95556 | A5556 | 5556(N61) | 55380 | EN AW-5556A/AI Mg5Mn | ||||
| AA/UNS | JIS H33263-1992 | BS 1470-1988 | IS733-2001 IS737-2001 |
EN 573-3-1994 | ||||
| 5654/A95654 | A5654 | EN AW-5654/AI Mg3.5Cr | ||||||
| AA/UNS | JIS H4000-1988 | EN 573-3-1994 | ||||||
| ～6151 | A6165 | AISiMgCu/3.3214 | AB/1340 | |||||
| AA | JIS H4040-1999 JIS H4100-1999 |
DIN 1725.1-1986/W-Nr. | ГOCT 4785-1974 | |||||
| 6005/A96005 | AI SiMg | EN AW-6005/AI SiMg | ||||||
| AA/UNS | ISO 209.1-1989 | EN 573-3-1994 | ||||||
| 6005A | AIMgSi0.7/3.3210 | AI SiMg(A) | EN AW-6005A/AI SiMg(A) | |||||
| AA | DIN 1725.1-1986/W-Nr. | ISO 209.1-1989 | EN 573-3-1994 | |||||
| 6082/A96082 | AIMgSi1/3.2315 | 6082(A-SGM0.7) | AД35/1350 | 64430 | AI SiMgMn | EN AW-6082/AI SiMgMn | ||
| AA/UNS | DIN 1725.1-1986/W-Nr. | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | ||
| 6351/A96351 | AB/1340 | AI SiMg0.5Mn | EN AW-6351/AI SiMg0.5Mn | |||||
| AA/UNS | ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | |||||
| 6060/A96060 | AIMgSi0.5/3.3206 | 6060(A-GS) | AI MgSi | EN AW-6060/AI MgSi | ||||
| AA/UNS | DIN 1725.1-1986/W-Nr. | NF A50-411 | ISO 209.1-1989 | EN 573-3-1994 | ||||
| 6061/A96061 | A6061 | AIMgSi1Cu/3.3211 | 6061(N20/H20) | 6061(A-GSUC) | AД33/1330 | 65032 | AI Mg1SiCu | EN AW-6061/AI Mg1SiCu |
| AA/UNS | JIS H4040-1999 JIS H4000-1999 |
DIN 1725.1-1986/W-Nr. | BS 1470-1988 | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 |
| 6063/A96063 | A6063 | 6063(HT9) | (～A-GS) | AД31/1310 | 63400 | AI Mg0.7Si | EN AW-6063/AI Mg0.7Si | |
| AA/UNS | JIS H4040-1999 JIS H4100-1999 |
BS 1470-1988 | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | |
| 6063A | AI Mg0.7Si(A) | EN AW-6063A/AI Mg0.7Si(A) | ||||||
| AA | ISO 209.1-1989 | EN 573-3-1994 | ||||||
| 6101/A96101 | A6101 | ～E-AIMgSi0.5/3.3207 | E-AI MgSi | EN AW-6101/E-AI MgSi | ||||
| AA/UNS | JIS H4180-1990 | DIN 1725.1-1986/W-Nr. | ISO 209.1-1989 | EN 573-3-1994 | ||||
| 6101A | 6101A(E91E) | E-AI MgSi(A) | EN AW-6101A/E-AI MgSi(A) | |||||
| AA | BS 2898-1988 | ISO 209.1-1989 | EN 573-3-1994 | |||||
| 6081/A96081 | 6081(A-SGM0.3) | EN AW-6081/AI Si0.9MgMn | ||||||
| AA/UNS | NF A50-451 | EN 573-3-1994 | ||||||
| 6262/A96262 | 6262 | AI Mg1SiPb | EN AW-6262/AI Mg1SiPb | |||||
| AA/UNS | BS 2898-1988 | ISO 209.1-1989 | EN 573-3-1994 | |||||
| 6463/A96463 | 6463(91E/E6) | EN AW-6463/AI Mg0.7Si(B) | ||||||
| AA/UNS | BS 1474-1988 | EN 573-3-1994 | ||||||
| 7072/A97072 | A7072 | AI Zn1/3.4415 | Aц1 | EN AW-7072/AI Zn1 | ||||
| AA/UNS | JIS H4000-1999 | DIN 1725.1-1986/W-Nr. | ГOCT 4785-1974 | EN 573-3-1994 | ||||
| B94/1940 | ||||||||
| ГOCT 4785-1974 | ||||||||
| 7010/A97010 | 7010 | B95/1950 | AI Zn6MgCu | EN AW-7010/AI Zn6MgCu | ||||
| AA/UNS | BS 1470-1988 | ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | ||||
| 7005/A97005 | A7N01 | AцM | 74530 | AI Zn4.5Mg1.5Mn | EN AW-7005/AI Zn4.5Mg1.5Mn | |||
| AA/UNS | JIS H4080-1999 JIS H4000-1999 |
ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | |||
| ～7079 | ||||||||
| AA | ||||||||
| ～7017/A97017 | ≈1925 | |||||||
| AA/UNS | ГOCT 4785-1974 | |||||||
| 7003/A97003 | A7003 | EN AW-7003/AI Zn6Mg0.8Zr | ||||||
| AA/UNS | JIS H4040-1999 JIS H4100-1999 |
EN 573-3-1994 | ||||||
| 7005/A97005 | A7N01 | 74530 | AI Zn4.5Mg1.5Mn | EN AW-7005/AI Zn4.5Mg1.5Mn | ||||
| AA/UNS | JIS H4080-1999 JIS H4000-1999 |
IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 | ||||
| 7020/A9020 | AIZn4.5Mg1/3.4335 | 7020(A-Z5G) | ～1925C | AI Zn4.5Mg1 | EN AW-7020/AI Zn4.5Mg1 | |||
| AA/UNS | DIN 1725.1-1986/W-Nr. | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | ISO 209.1-1989 | EN 573-3-1994 | |||
| 7022/A97022 | AIZn1MgCu0.5/3.4345 | EN AW-7022/AI Zn5Mg3Cu | ||||||
| AA/UNS | DIN 1725.1-1986/W-Nr. | EN 573-3-1994 | ||||||
| 7050/A97050 | A7050 | AI Zn6CuMgZr | EN AW-7050/AI Zn6CuMgZr | |||||
| AA/UNS | JIS H4080-1999 JIS H4000-1999 |
DIN 1725.1-1986/W-Nr. | BS 1470-1988 | NF A50-411 NF A50-451 |
ГOCT 4785-1974 | IS733-2001 IS737-2001 |
ISO 209.1-1989 | EN 573-3-1994 |
| 7475/A9475 | AI Zn5.5MgCu(A) | EN AW-7475/AI Zn5.5MgCu(A) | ||||||
| AA/UNS | ISO 209.1-1989 | EN 573-3-1994 | ||||||
| 7010 | AI Zn6MgCu | EN AW-7010/AI Zn6MgCu | ||||||
| AA | ISO 209.1-1989 | EN 573-3-1994 | ||||||
| 7012 | EN AW-7012/AI Zn6Mg2Cu | |||||||
| AA | EN 573-3-1994 | |||||||
| 7049A | 7049A(A-Z8GU) | AI Zn8MgCu | EN AW-7049A/AI Zn8MgCu | |||||
| AA | NF A50-411 NF A50-451 |
ISO 209.1-1989 | EN 573-3-1994 | |||||
| 7178 | AI Zn7MgCu | EN AW-7178/AI Zn7MgCu | ||||||
| AA | ISO 209.1-1989 | EN 573-3-1994 |
