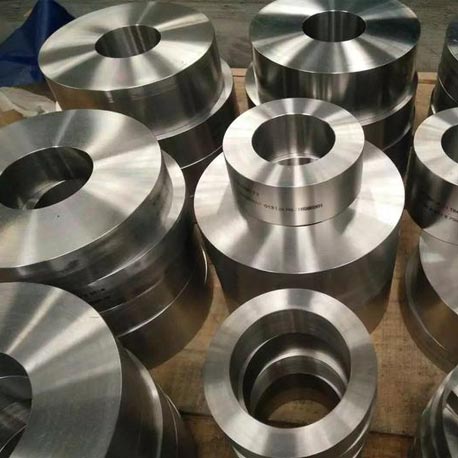

Superalloy forging rings / circle are a key component used in extreme environments such as high temperature, high pressure, and corrosion, and have important applications. High-temperature alloy forged rings / circle are composed of nickel and copper with added elements such as aluminum and titanium, resulting in extremely high corrosion resistance and oxidation resistance.
Hastelloy grades are a group of corrosion-resistant alloys developed in harsh chemical environments. These grades exhibit superior mechanical strength and resistance to high temperatures and pressure extremes. Furthermore, the unique composition of these grades allows them to be easily forged, making them an ideal choice for manufacturing equipment used in the chemical processing industry. Hastelloy grades come in various forms, including sheets, plates, bars, and pipes, offering versatility in design options.
| FORGING | TYPE | MAX. WEIGHT | MAX. DIMENSION | ALLOY | STANDARD |
| Open die forging | Cube | ≤ 15t | Length ≤ 7000mm , Width ≤ 1500mm , Height ≤ 800mm | A-286, HA188, Inconel 718, Inconel 600, Inconel X-750, Nimonic 90, Udimet 710, Incoloy 901, Incoloy 825, Hastelloy, Hastelloy X, Rene’41, Rene’95 | ASTM A837, ASTM B865, ASTM B637, AMS 5662, AMS 5666 |
| Disk | ≤ 10t | Diameter ≤ 2000mm | |||
| Ring / circle | ≤ 5t | Diameter ≤ 2500mm , Height ≤ 500mm | |||
| Cylinder | ≤ 5t | Diameter ≤ 1800mm , Length ≤ 1200mm | |||
| Axle | ≤ 15t | Length ≤ 7000mm , Diameter ≤ 800mm |
In addition, we can also provide other shapes of superalloy forgings, Send your request

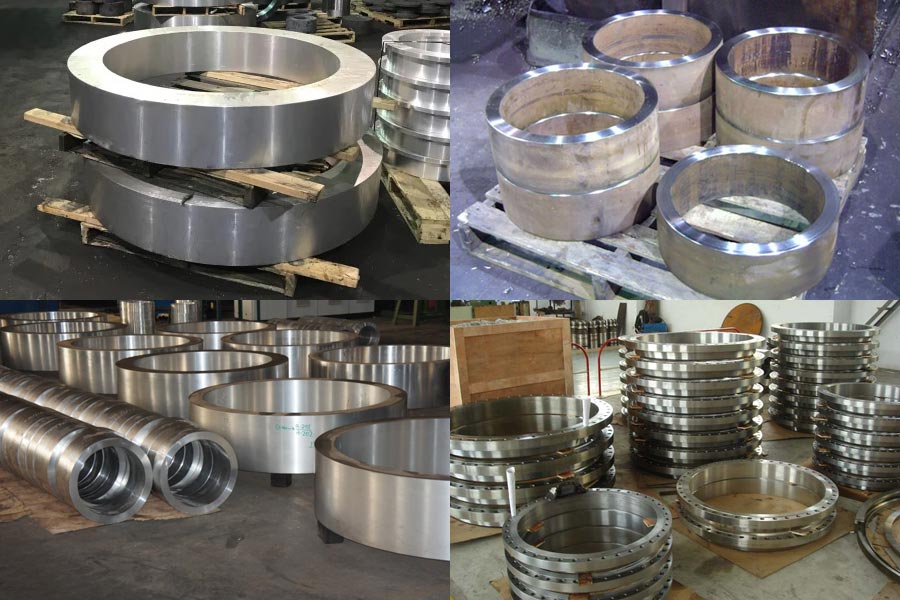

High temperature alloy forging ring / circle is a kind of high performance alloy material which is widely used in marine engineering, chemical, petroleum, nuclear power and other fields. It is mainly used in the manufacture of equipment and pipes under extreme environments such as catalyst carriers, heat exchangers, reactors, compressors, pumps, etc. It can also be used in gas turbines, aero engines, nuclear power plant reactors, desalination equipment, sewage treatment equipment, shipbuilding and other fields.
If you’re interested in producing custom metal parts, Contact us today to schedule a consultation. Our experienced support team members will go through your project requirements with you, help you determine the best course of action, and provide you with a free quote for your project.
Our materials are able to withstand heavy mechanical, thermal and chemical stress, sometimes all three simultaneously.
We can provide customized services according to your needs
| ASTM | UNS | W-Nr. | JIS | KS | Element | DIN EN/DIN | ||||
| Incoloy800 | N08800 | 1.4876 | NCF800/2B | NCF800 | GH20 | 0Cr20Ni32AlTi | X10NiCrAlTi32-20 | |||
| Incoloy800H | N08810 | 1.4958 | NCF800H | 1Cr20Ni32AlTi | X10NiCrAlTi32-20 | |||||
| Incoloy800HT | N08811 | 1.4959 | 0Cr25Ni35AlTi | |||||||
| Incoloy825 | N08825 | 2.4858 | NCF825 | NCF825 | 0Cr21Ni42Mo3Cu2Ti | NiCr21Mo | ||||
| Incoloy901 | ||||||||||
| Incoloy925 | N09925 | |||||||||
| Incoloy926 | N08926 | 1.4529 | ||||||||
| Inconel600 | N06600 | 2.4816 | NCF1B | NCF600 | GH600 | 1Cr15Ni75Fe8 | NiCr15Fe8 | |||
| Inconel601 | N06601 | 2.4851 | NCF601 | NCF601 | 1Cr23Ni60Fe13Al | NiCr23Fe | ||||
| Inconel625 | N06625 | 2.4856 | NCF625 | NCF625 | 0Cr20Ni65Mo10Nb4 | NiCr22Mo9Nb | ||||
| Inconel690 | N06690 | 2.4642 | 0Cr30Ni60Fe10 | NiCr29Fe | ||||||
| Inconel718 | N07718 | 2.4668 | GH169 | NiCr19Fe19Nb5Mo3 | ||||||
| Inconel725 | N07725 | |||||||||
| Inconel X-750 | N07750 | 2.4669 | NCF750 | GH145 | XCr15Fe7TiAl | |||||
| HC-276 | N10276 | 2.4819 | 00Cr15Ni60Mo16W5Fe5 | NiMo15Cr15W | ||||||
| HB | N10001 | 2.4800* | 0Ni65Mo28Fe5V | S-NiMo 30 | ||||||
| HB-2 | N10665 | 3.4617 | 00Ni70Mo28 | NiMo28 | ||||||
| HB-3 | N10675 | 2.4600* | NiMo29Cr | |||||||
| HC | N10002 | 2.4819 | 0Cr15Ni60Mo16W5Fe5 | NiMo16Cr15W | ||||||
| HC-4 | N06455 | 2.4610* | 00Cr16Ni65Mo16Ti | NiMo16Cr16Ti | ||||||
| HC-22 | N06022 | 2.4602 | NiMo21Cr14W | |||||||
| HC-2000 | N06200 | 2.4675 | NiCr23Mo16Cu | |||||||
| Hastelloy-X | N06002 | 2.4465 | ||||||||
| Monel400 | N04400 | 2.4360，2.4361 | ||||||||
| MonelK500 | N05500 | 2.4375 | ||||||||
| Monel401 | N04401 | |||||||||
| Monel404 | 2.4867 | |||||||||
| Ni 200 | N02200 | 2.4066 | ||||||||
| Ni 201 | N02201 | |||||||||
| Nitronic50 | S20910 | XM-19 | ||||||||
| Nitronic60 | S21800 | Alloy218 | ||||||||
| Alloy20 Cb-3 | N08020 | 2.4660* | Carpeter20Cb-3 | 0Cr20Ni35Mo3Cu4Nb | NiCr20CuMo | |||||
| Alloy31 | N08031 | 1.4562 | X1NiCrMoCu 32-28-7 | |||||||
| Alloy33 | N08033 | 1.4591 | X1NiCrMoCuN 33-32-1 | |||||||
| ASTM | UNS | W-Nr. | JIS | KS | Element | DIN EN/DIN | ||||
| Alloy20 Cb-3 | N08020 | 2.4660* | Carpeter20Cb-3 | 0Cr20Ni35Mo3Cu4Nb | NiCr20CuMo | |||||
| IncoloyA-286 | S66286 | 1.4980,1.4944 | SUH660 | |||||||
| Incoloy800 | NO8800 | 1.4876 | NCF800B | NCF2B | GH20 | 0Cr20Ni32AlTi | X2NiCrAlTi3220 | |||
| Nimonic75 | 2.4951 | |||||||||
| N06219 | 2.4855 | NiCr19Mo9Si | ||||||||
| HastelloyX | N06002 | 2.4613 | ||||||||
| Inconel600 | N06600 | 2.4816 | NCF1B | NCF600 | GH600 | 1Cr15Ni75Fe8 | NiCr15Fe8 | |||
| Inconel625 | N06625 | 2.4856 | NCF625 | NCF625 | NS3306 | 0Cr20Ni65Mo10Nb4 | NiCr22Mo9Nb | |||
| InconelX-750 | N07750 | 2.4669 | NCF750 | XCr15Fe7TiAl | ||||||
| Nimonic80A | N07080 | 2.4952 | ||||||||
| Inconel718 | N07718 | 2.4668 | GH4169 | |||||||
| Inconel725 | N07725 | |||||||||
| Incoloy925 | N09925 | |||||||||
| Inconel600 | N06600 | 2.4816 | NCF600 | NCF1B | 1Cr15Ni75Fe8 | LC-NiCr15Fe | ||||
| PB | ||||||||||
| Alloy4 | ||||||||||
| Alloy31 | N08031 | 1.4562 | ||||||||
| F15 | ||||||||||
| Invar36 | K93600 | 1.3912 | ||||||||
